Features :
1.Low power consumption, can operate in normal temperature and low pressure
2.Small size,simple structure,low investment
3.The processing in only liquid transpotation by pressure, so the flow chat is simple and easy to operate and mamage.
4. Treatment capacity can be 1-100 ton per hour.
Replacement time of consumable parts
There are several kinds of consumables you need to replace regularly.
a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. UF membrane: replaced about every 2 -3years
We suggest customers buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to be replaced every month.
Summarization:
1. Ultrafiltration is a purification, separation or concentration of semipermeable membrane in separation techniques for solution. After more than 20 years rapid development, it has become one of the widest techniques in membrane separation field. It widely uses in food and beverage, chemical electron, biological construction for environmental protection, etc.

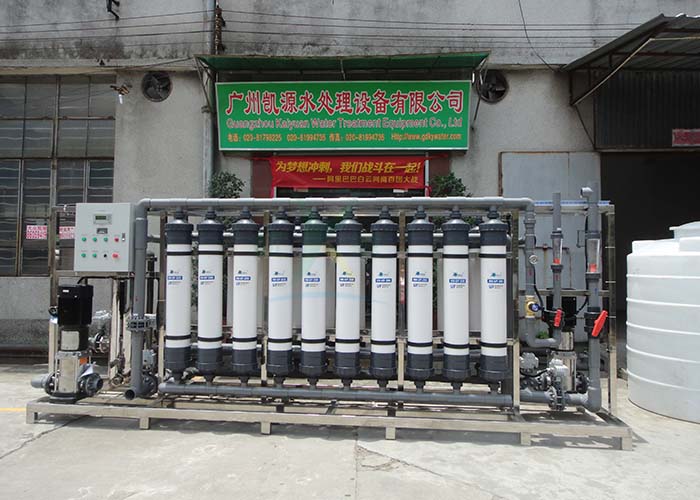

Working process of UF Purification System:
Raw water→ Raw water tanks(buyer supply) →Raw water pumps →Disc filter→ Activated carbon filter →5μm security filter→Ultrafiltration device → Pure water tank(buyer supply) →Water supply point
1.Using the Pretreatment, Micro filter, UF, Ozone Generator for sterilization to produce the qualified natural mineral water.
2.The pretreatment device installs with multimedia filter, which is filled with refining Quartz Sand, to remove the large particles, silt particles ,suspended solids ,other impurities.
3.And the activated carbon filter can effectively remove the organic substance, odor, color, colloidal impurities .
4. 5μ security filter, can block the particle more than 5 micron-meter passing into next process.
5.UV Sterilizer can kill the bacteria, virus,effectively.
6. 1μ security filter, mainly used to get rid of the smaller particles and remains of bacteria,virus.
7.Ultra filtration is a separation process, with pore sizes in the range of 0.1 to 0.001 micron. Typically, ultra filtration will remove high molecular weight substances, colloidal materials, and organic and inorganic polymeric molecules. Low molecular weight organics and ions such as sodium, calcium, magnesium chloride, and sulfate can not be removed, so, it can make the finished water with no bacteria, clear and good tasty.
8.At terminal, there is a Ozone generator for sterilization, keep water clean avoiding secondary pollution, ensuring high-quality finished water sterile and longer shelf-life.
