RO Filtration Plant / Purified Ultra Pure Water System Desalination Treatment

Name: RO Filtration Plant Purified Ultra Pure Water System Desalination Treatment
Brand: Kaiyuan
Price: 1 USD

China RO Filtration Plant / Purified Ultra Pure Water System Desalination Treatment wholesale

Brand Name : Kaiyuan

Model Number : KYRO-2000LPH

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : negotiation

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >300sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

Name : RO Water Treatment System

Production Capacity : 2000 litters per hour

Electrical Power : 220/380V 50/60Hz

Tank Material : FRP

Pipe fitting : SUS304/ U-PVC

Function : Remove Dissolved Solids From Water

Feed Water TDS : <2000mg/L

Desalination Rate : >=97%

Contact Now

RO Filtration Plant / Purified Ultra Pure Water System / Desalination Treatment

Ultra Pure Water System Description

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids,organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water isdelivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Waterpermeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99%bacterials in the feed water.

Specificationfor 2000L/H RO system
Item	Material/Model	Brand	Function
Raw water pump	SS304	Domestic	Provide pressure for raw water
Quartz sand filter	SUS-304	Domestic	Remove large particule
Activated carbon filter	SUS-304	Domestic	Removesmell,color,bacterial and organic matter
Security filter	PVC 1μm/5μm	Domestic	Block impurities greater than 5micron(1micron)
High pressure pump	SS304	CNP	Provide pressure for water into RO membrane
RO membrane	LCLE-4040	USA DOW	Remove heavy mental ion,bacterial,virus
UV sterilizer(Optional)	40W	Domestic	Kill 99% bacterial (For drinking directly)
Ozone Generator(Optional)	5g/l	Domestic	Kill 99%bacterial and keep 2hours.(For making bottled water)

Ultra Pure Water System Performance

⇒ Main part (membrane) of reverse osmosis system is imported from USA.
⇒ Auto stop when no water and full water.

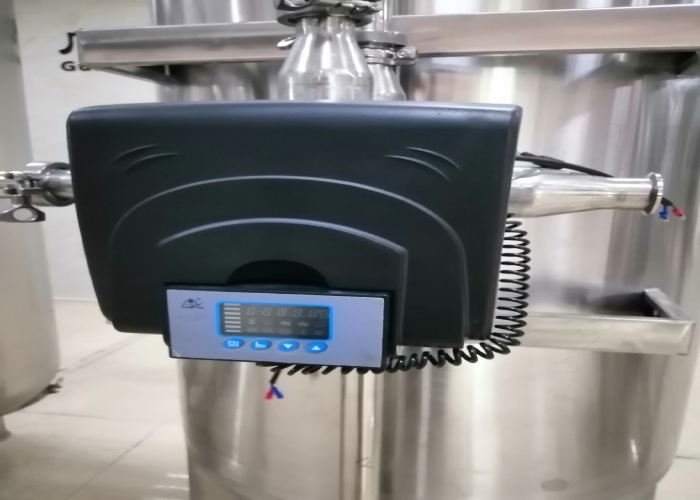

⇒ Auto controller, RO membrane auto flush to protect membrane.
⇒ Auto start when pure water tank have no water.
⇒ Low pressure protection switch to protect high pressure pump when there is no raw water.
⇒ High efficient and low noise high pressure pump.
⇒ Product water conductivity meter to monitor product water quality all the time.
⇒ Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
⇒ Inlet water solenoid valve to stop water when machine is stop.

Ultra Pure Water System Advantages

Low power consumption, completely made of 304 stainless steel, the pretreatment equipment and pipeline valve are all sanitary material, conpact conformation, convenient to tranport. No need works to operate. It is PLC program controlled. Installed with conductivity meter monitor,pressure gauge and flow meter.

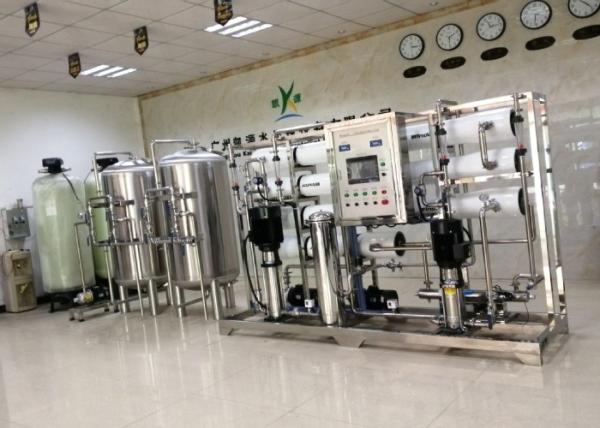

Ultra Pure Water System Show
