Brackish Water System Desalination RO Plant For Irrigation / Drinking / Boiler
1. Product Description
Brackish water TDS range 3000 - 25000 ppm , according to the organic content can be devided into surface water and ground water . surface water we can reverse osmosis system mating with relative sterilization system , ground water we can direct use reverse osmosis system , if Iron and Manganese overpass the inlet condition of RO ,we need add Manganese sand filter for pretreatment system , here also include the specific inlet conditon of RO system for reference.
RO series reverse osmosis device for electronics, electroplating,power plants, pharmaceutical, petroleu, chemical, food and beverage and printing industries to provide high quality water, reverse osmosis pure water technology is the most advanced, most economical, the most effective system of water technology, which is the use of ultra-thin film reverse osmosis membrane by water pressure, so that the water seepage from the high levels of salt to reverse the process of low salinity. Can remove most of the harmful substances, heavy metals, solids can be capacitive, only water molecules can only end through a reverse osmosis membrane water.
2. Product Details
1. Pretreatment system:
| (1) Raw water pump CHL12-40 SUS-316 |
| (2) Sand filter Φ1000 × 1950 1300KG FRP |
| (3) Carbon filter Φ1000 × 1950 375KG FRP |
| (4) Chemical dosing pump and tank |
| (5) Cartridge filter 40″×5μm 7core |
2. RO system parts:
| (1) High pressure pump: CNP brand |
| (2) Ro membrane: Dow brand |
| (3) RO membrane housing |
| (4) Ro rack and other related meters |
3. Features
1. Imported accessories account for over 90%.
2. High operation automation degree.
1) Automatic stopping in case of sufficient water under low pressure
2) Automatic stopping in case of sufficient water usder high pressure
3) Protection of hydraulic fluctuation resistance
4) Timed flushing of front filtering materials by automatic controller
5) Automatic flushing of reverse osmosis film by IC microcomputer controller
6) Automatic monitoringof water quality
3. Small landing area,low energy consumption,free of pollution,simple process,high water quality and easy operation and maintenance
4.High removing rate,above 97% for dissolved salts,above 98% for organic substances,asnd above98% for colloids,bacteria and heat sources etc.
Application
Electronic,power,photovoltaic,beverage,medicine,middle water recycling and sea water desalination,drinking
4. Wroking Process
1. Raw water pump-- provide the pressure to silica sand filter/active carbon filter
2. Silica Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4, Softener--reduce the hardness of water
4. Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
5. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
6. RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.

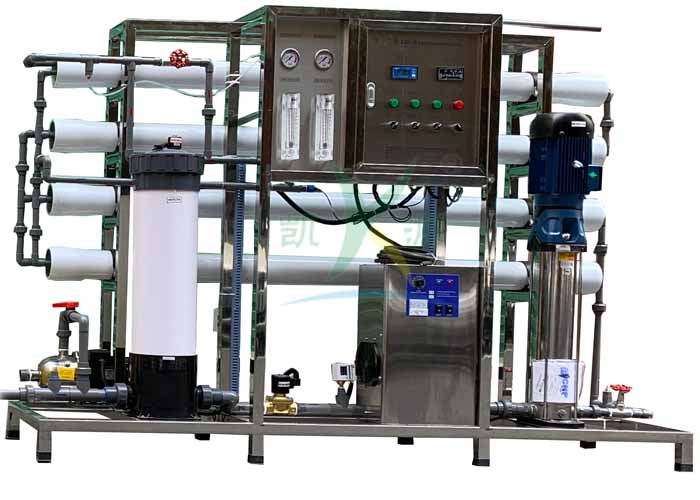

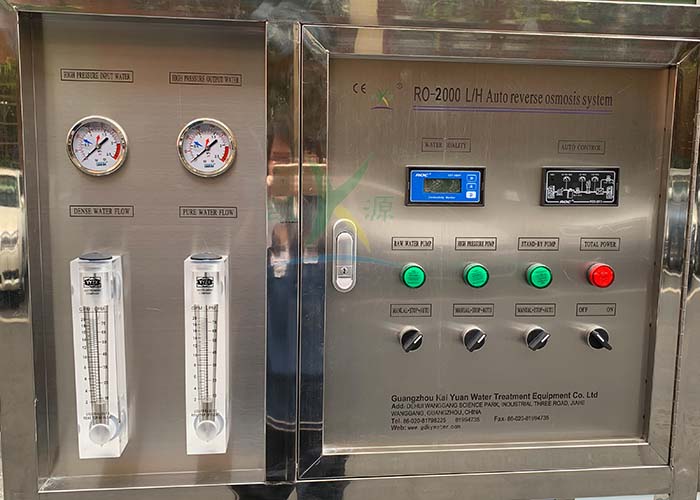

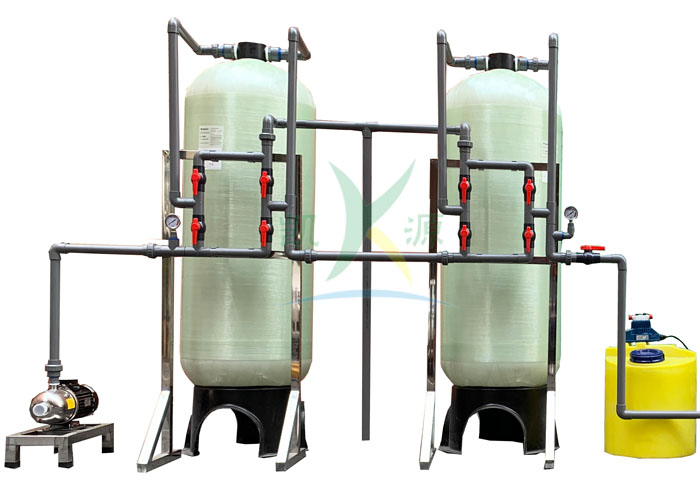

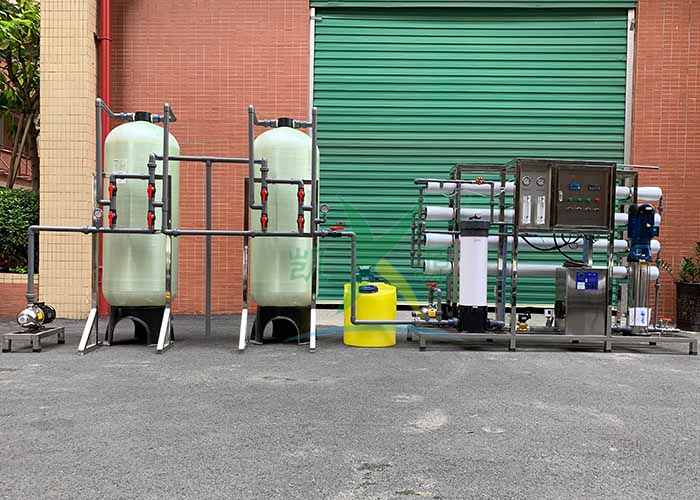

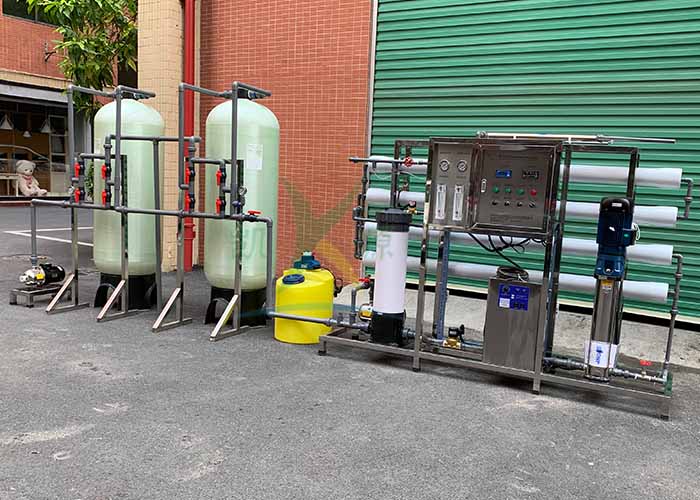

5. Pictures show:
